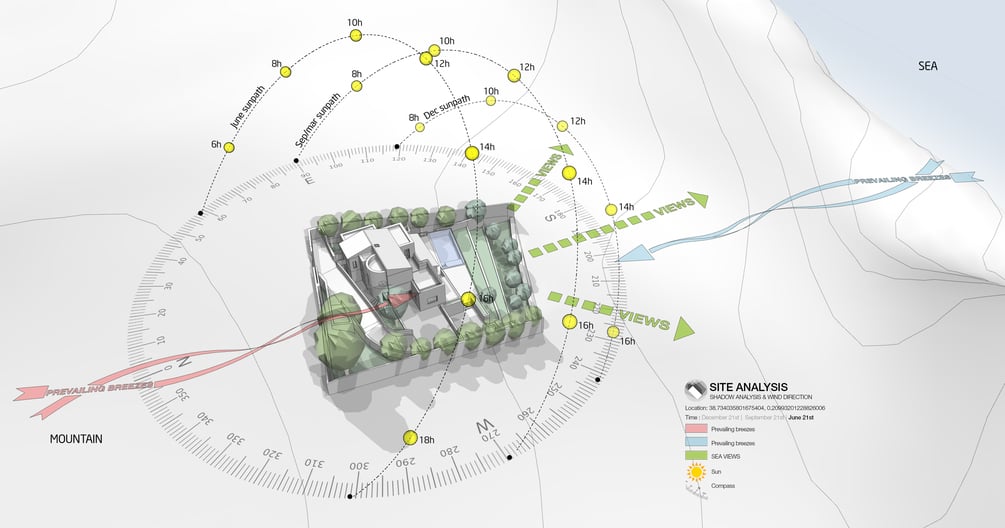

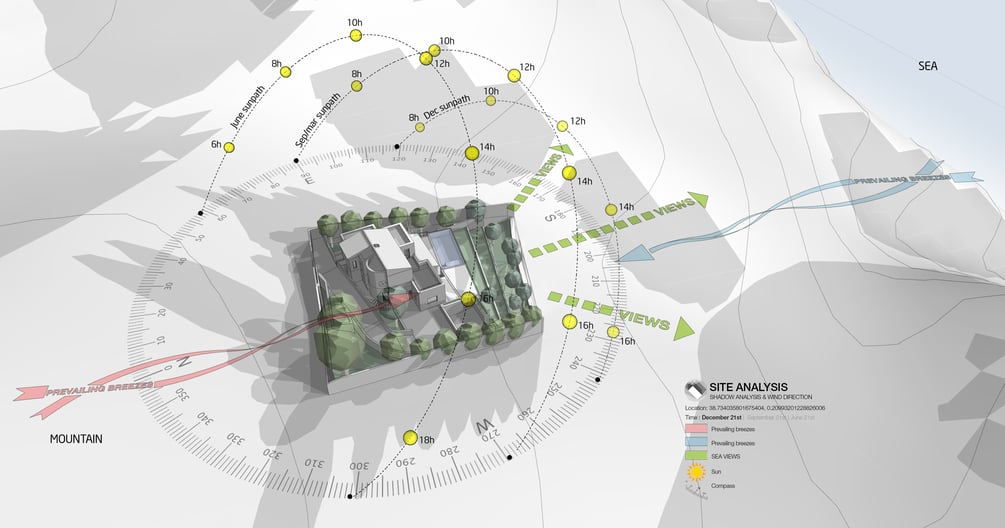

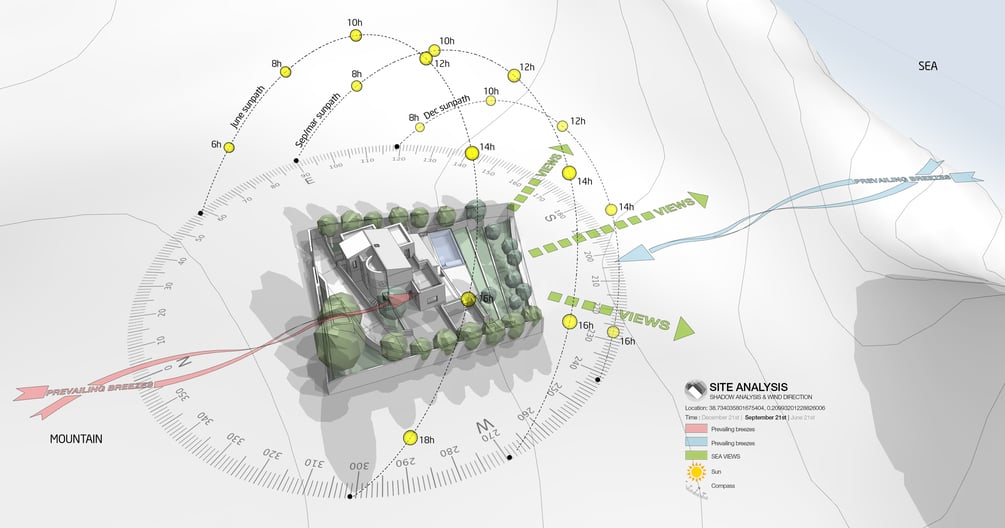

The workflow creates an architectural diagram for the project.

Can be create:

1. Urban diagram
2. Architectural diagram
3. Site diagram
4. Shadow diagram
5. and more

Software used:

1. SketchUp: Modeling and editing sun paths, winds, views, etc.
2. Photoshop: Editing images exported from SketchUp, creating animations for the sun and wind.

This tutorial is more difficult than the Sun path diagram tutorial (Project example 01) because the diagram includes: contour lines, many symbols motion (winds, views,.. etc.)

Tutorial (step-by-step guide and videos):

1. Determine the coordinates of the location research
2. Add location, terrain and contour lines for model research on the architectural diagram. (in SketchUp software)
3. Add Sun path and customize with coordinates on the architectural diagram.
4. Set up the scenes to export files and motion shadows
5. Export shadow animation (SketchUp 2023)
6. Create motion for the Sun and symbols on the architectural diagram. ( in Photoshop software)
7. Final results

Full Tutorial at link https://sundiagram.com/architectural-diagram-tutorial-02/

or Youtube link: https://youtu.be/ydnkMEyhPyY

All files (2D + 3D) used in the tutorial are included
